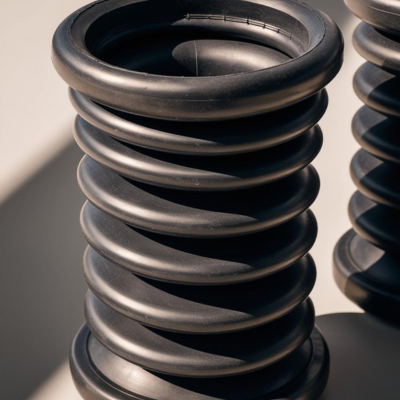

Bellows

Rubber bellows protect moving parts from dust, dirt, moisture, and vibration. They are flexible connectors used in mechanical joints, actuators, and valves. Our bellows ensure smooth movement and extend the service life of sensitive components in automation and transport equipment. We produce both convoluted and molded types in various configurations for axial, lateral, or angular movemen


Polymers:

BRIGHT STAR has successfully developed formulations and rubber components based on the following polymers and has been supplying to diverse industries over the past few decades.

  • FFKM/ Perfluoroelastomer
  • FKM / Viton ®
  • TFE/P/Aflas ®
  • Silicone, Flurosilicone
  • Nitrile (NBR), Carboxylated
  • NBR (XNBR) / PVC Nitrile
  • SBR
  • EPDM, EPR
  • Chloroprene / Neoprene®
  • Natural / PLC / Polyisoprene
  • Polyurethane
MATERIAL HARDNESS RANGE (SHORE A) HIGH TEMP °C LOW TEMP °C STEAM
FFKM 70-90 300 -10 E
FKM (VITON) 50-90 230 -20 F-G
AFLAS 60-90 200 -10 E
NBR 20-95 100 -30 F-G
HNBR 50-95 150 -40 G
SBR 40-90 100 -40 P
EPDM 40-90 150 -40 E
SILICONE 20-80 200 -60 F-G
NR 30-90 70 -50 P
CR 40-90 100 -40 F

Rating

  • E = Excellent – Suitable for prolonged exposure to saturated steam at high temperatures
  • G = Good – Suitable for moderate steam exposure with some limitations
  • F = Fair – Can handle light or intermittent steam but not continuous service
  • P = Poor – Degrades quickly in steam; not recommended
