CORDS AND EXTRUDED PROFILES

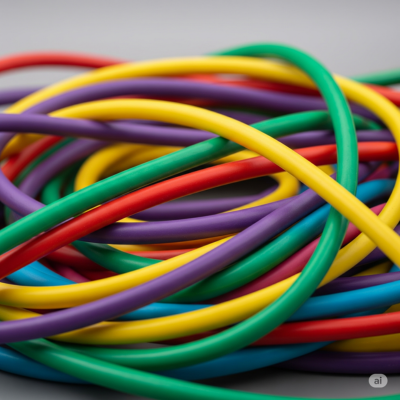

PROFILES Rubber cords and extruded profiles are used for sealing, insulation, and cushioning in industrial and commercial setups. Available in solid and sponge forms, they are manufactured in NBR, Silicone, EPDM, and Neoprene. Bright Star offers customization in shapes, hardness, and color. Applications include door seals, weatherstrips, glazing seals, and shock-absorbing trims, all produced with precise dimensional accuracy


Polymers:

BRIGHT STAR has successfully developed formulations and rubber components based on the following polymers and has been supplying to diverse industries over the past few decades.

  • FFKM/ Perfluoroelastomer
  • FKM / Viton ®
  • TFE/P/Aflas ®
  • Silicone, Flurosilicone
  • Nitrile (NBR), Carboxylated
  • NBR (XNBR) / PVC Nitrile
  • SBR
  • EPDM, EPR
  • Chloroprene / Neoprene®
  • Natural / PLC / Polyisoprene
  • Polyurethane
MATERIAL HARDNESS RANGE (SHORE A) HIGH TEMP °C LOW TEMP °C STEAM
FFKM 70-90 300 -10 E
FKM (VITON) 50-90 230 -20 F-G
AFLAS 60-90 200 -10 E
NBR 20-95 100 -30 F-G
HNBR 50-95 150 -40 G
SBR 40-90 100 -40 P
EPDM 40-90 150 -40 E
SILICONE 20-80 200 -60 F-G
NR 30-90 70 -50 P
CR 40-90 100 -40 F

Rating

  • E = Excellent – Suitable for prolonged exposure to saturated steam at high temperatures
  • G = Good – Suitable for moderate steam exposure with some limitations
  • F = Fair – Can handle light or intermittent steam but not continuous service
  • P = Poor – Degrades quickly in steam; not recommended
