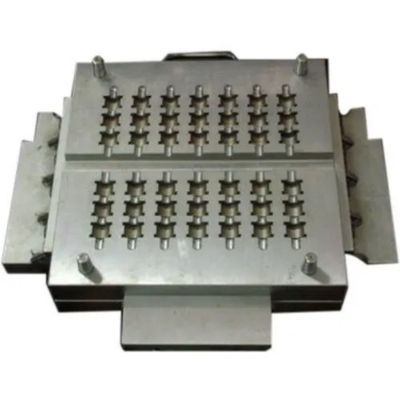

Rubber Molds
Rubber molds are custom-shaped tools or components made through compression or injection molding. They are used to form or replicate parts in industries such as consumer goods, packaging, and medical devices. Bright Star develops rubber molds based on client drawings or samples. Our precision molding capabilities allow for high-volume production of complex geometries with tight tolerances and material traceability.
Polymers:
BRIGHT STAR has successfully developed formulations and rubber components based on the following polymers and has been supplying to diverse industries over
the past few decades.
- FFKM/ Perfluoroelastomer
- FKM / Viton ®
- TFE/P/Aflas ®
- Silicone, Flurosilicone
- Nitrile (NBR), Carboxylated
- NBR (XNBR) / PVC Nitrile
- SBR
- EPDM, EPR
- Chloroprene / Neoprene®
- Natural / PLC / Polyisoprene
- Polyurethane
| MATERIAL | HARDNESS RANGE (SHORE A) | HIGH TEMP °C | LOW TEMP °C | STEAM |
| FFKM | 70-90 | 300 | -10 | E |
| FKM (VITON) | 50-90 | 230 | -20 | F-G |
| AFLAS | 60-90 | 200 | -10 | E |
| NBR | 20-95 | 100 | -30 | F-G |
| HNBR | 50-95 | 150 | -40 | G |
| SBR | 40-90 | 100 | -40 | P |
| EPDM | 40-90 | 150 | -40 | E |
| SILICONE | 20-80 | 200 | -60 | F-G |
| NR | 30-90 | 70 | -50 | P |
| CR | 40-90 | 100 | -40 | F |
Rating
- E = Excellent – Suitable for prolonged exposure to saturated steam at high temperatures
- G = Good – Suitable for moderate steam exposure with some limitations
- F = Fair – Can handle light or intermittent steam but not continuous service
- P = Poor – Degrades quickly in steam; not recommended
