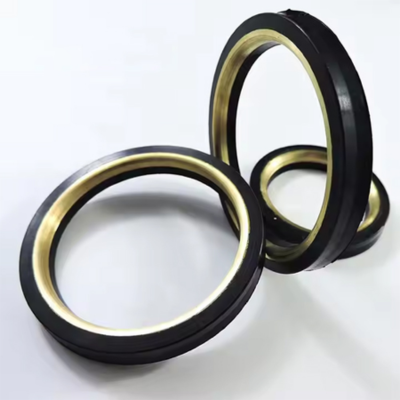

Pipeline Rings

Rubber pipeline rings provide sealing and cushioning in duct pipes, joints, and manholes. They absorb expansion, reduce vibration, and prevent leakage in drainage and sewer systems. Bright Star offers rings in EPDM, NBR, and Neoprene for civil, industrial, and infrastructure applications


Polymers:

BRIGHT STAR has successfully developed formulations and rubber components based on the following polymers and has been supplying to diverse industries over

the past few decades.

  • FFKM/ Perfluoroelastomer
  • FKM / Viton ®
  • TFE/P/Aflas ®
  • Silicone, Flurosilicone
  • Nitrile (NBR), Carboxylated
  • NBR (XNBR) / PVC Nitrile
  • SBR
  • EPDM, EPR
  • Chloroprene / Neoprene®
  • Natural / PLC / Polyisoprene
  • Polyurethane
MATERIAL HARDNESS RANGE (SHORE A) HIGH TEMP °C LOW TEMP °C STEAM
FFKM 70-90 300 -10 E
FKM (VITON) 50-90 230 -20 F-G
AFLAS 60-90 200 -10 E
NBR 20-95 100 -30 F-G
HNBR 50-95 150 -40 G
SBR 40-90 100 -40 P
EPDM 40-90 150 -40 E
SILICONE 20-80 200 -60 F-G
NR 30-90 70 -50 P
CR 40-90 100 -40 F

Rating

  • E = Excellent – Suitable for prolonged exposure to saturated steam at high temperatures
  • G = Good – Suitable for moderate steam exposure with some limitations
  • F = Fair – Can handle light or intermittent steam but not continuous service
  • P = Poor – Degrades quickly in steam; not recommended
