SHEETS

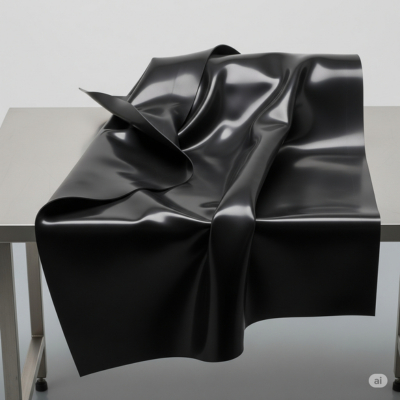

Rubber sheets are flat elastomeric materials used for gasketing, flooring, insulation, and lining. Bright Star offers sheets in various polymers (NBR, EPDM, Neoprene, Silicone) and hardness, suitable for industrial, electrical, and sanitary applications. Sheets are available in cloth-inserted or plain forms, and can be supplied with adhesive backing or cut-to-size upon request.


Polymers:

BRIGHT STAR has successfully developed formulations and rubber components based on the following polymers and has been supplying to diverse industries over

the past few decades.

  • FFKM/ Perfluoroelastomer
  • FKM / Viton ®
  • TFE/P/Aflas ®
  • Silicone, Flurosilicone
  • Nitrile (NBR), Carboxylated
  • NBR (XNBR) / PVC Nitrile
  • SBR
  • EPDM, EPR
  • Chloroprene / Neoprene®
  • Natural / PLC / Polyisoprene
  • Polyurethane
MATERIAL HARDNESS RANGE (SHORE A) HIGH TEMP °C LOW TEMP °C STEAM
FFKM 70-90 300 -10 E
FKM (VITON) 50-90 230 -20 F-G
AFLAS 60-90 200 -10 E
NBR 20-95 100 -30 F-G
HNBR 50-95 150 -40 G
SBR 40-90 100 -40 P
EPDM 40-90 150 -40 E
SILICONE 20-80 200 -60 F-G
NR 30-90 70 -50 P
CR 40-90 100 -40 F

Rating

  • E = Excellent – Suitable for prolonged exposure to saturated steam at high temperatures
  • G = Good – Suitable for moderate steam exposure with some limitations
  • F = Fair – Can handle light or intermittent steam but not continuous service
  • P = Poor – Degrades quickly in steam; not recommended
